SL-540 Slit Lamp with CCD

Optical System SLIT LAMP SL-540

llumination

Slit angle:	0° - 180°
Slit Aperture:	Continuous from 1 - 14 mm, φ14, 10, 5, 3, 1, 0.2 mm
Slit Vertical Tilt:	5° 10° 15° 20°
Filter:	Heat Absorption, Grey, Redfree, Cobalt Blue
Light Resource:	LED
Fixation Lamp:	Red LED 3.5V
Slit Length:	Continuous from 1 to 14 mm
Slit Width:	Continuous from 0 to 14 mm

Power

Input Voltage:	100 - 240V 48 - 62Hz
Input Power:	70VA

Dimensions and Weight

Dimensions:	740640450 mm
Net Weight:	21kg
Gross Weight:	24kg

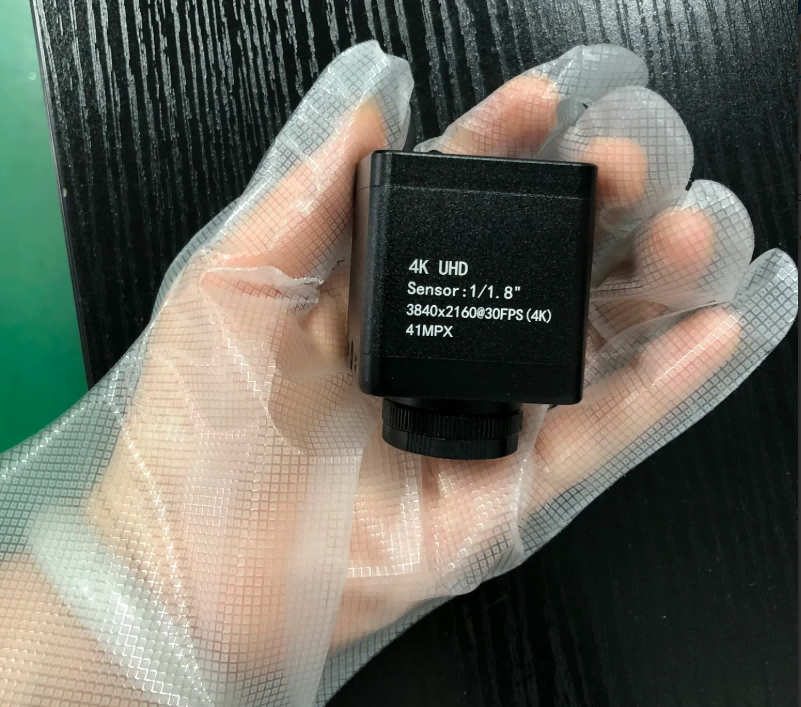

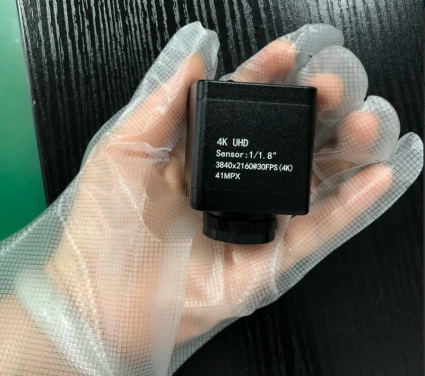

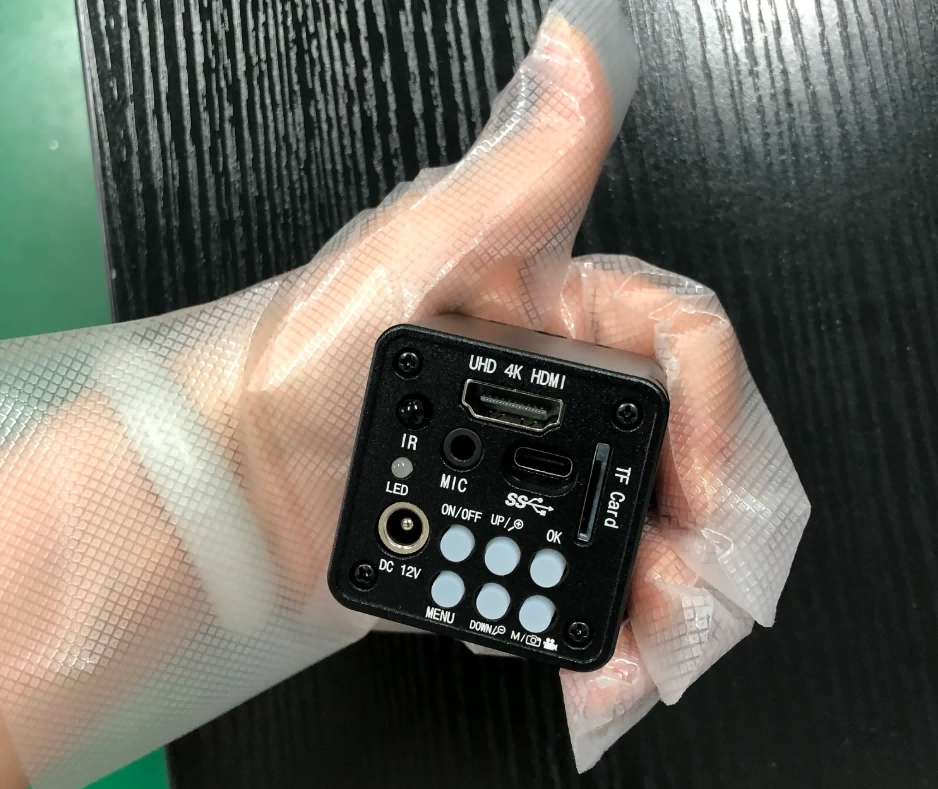

Optical System CCD Specifications :
Model :NV-4K-3
Sensor:SONY CMOS 1/1.8 IMX334 4K Sensor
Video output:4K/2K/1080P Full HD (HDMI output), 4K (USB output)
Sensor size:1/1.8" inch
Pixel size:2.0 × 2.0μm
Resolution:3840×2160 @30FPS(4K); 1920×1080P @30FPS;
Still image resolution:8528×4808 (41MP)，6160 X 3472 (21MP)，5440 X 3056 (16MP)
Video record:Support 4K record
USB Interface:Type-C USB
USB Output resolution:3840x2160 30FPS; 2592x1944 40FPS;2592x1944 40FPS;2084X1536 60FPS; 1920x1080P 60FPS;
Spectral Response (Wavelength):400nm~1000nm
Timed photo/video:Support timed photo/record
Dual-output:Support HDMI/USB output simultaneously
Same screen comparison:Real-time observation and comparison of two products
White balance:Support One-click, Auto and Manual white balance
HDR:Anti-reflective
Storage:TF Card, Maximum support 512GB
PC Support:Support Windows/Mac/ Linux systems, Software with measurement function (gift)
Image zoom:7X digital zoom
Language Setting: Chinese, English, Japanese, French, German, Russian, Italian, Korean, Turkish
Working Voltage: Type-C 5V / DC 12V 1A
HDR function:Support HDR, Multiple exposure HDR, Digital overlap HDR.
