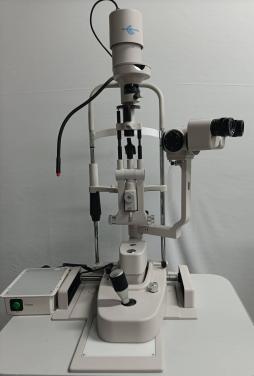

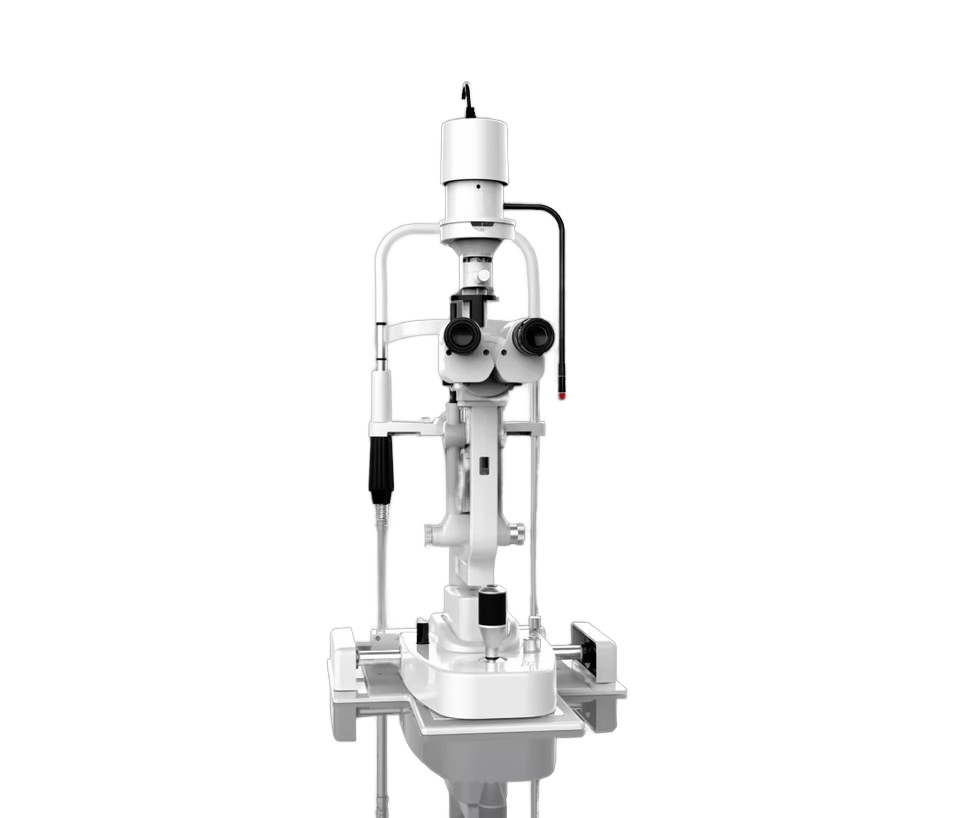

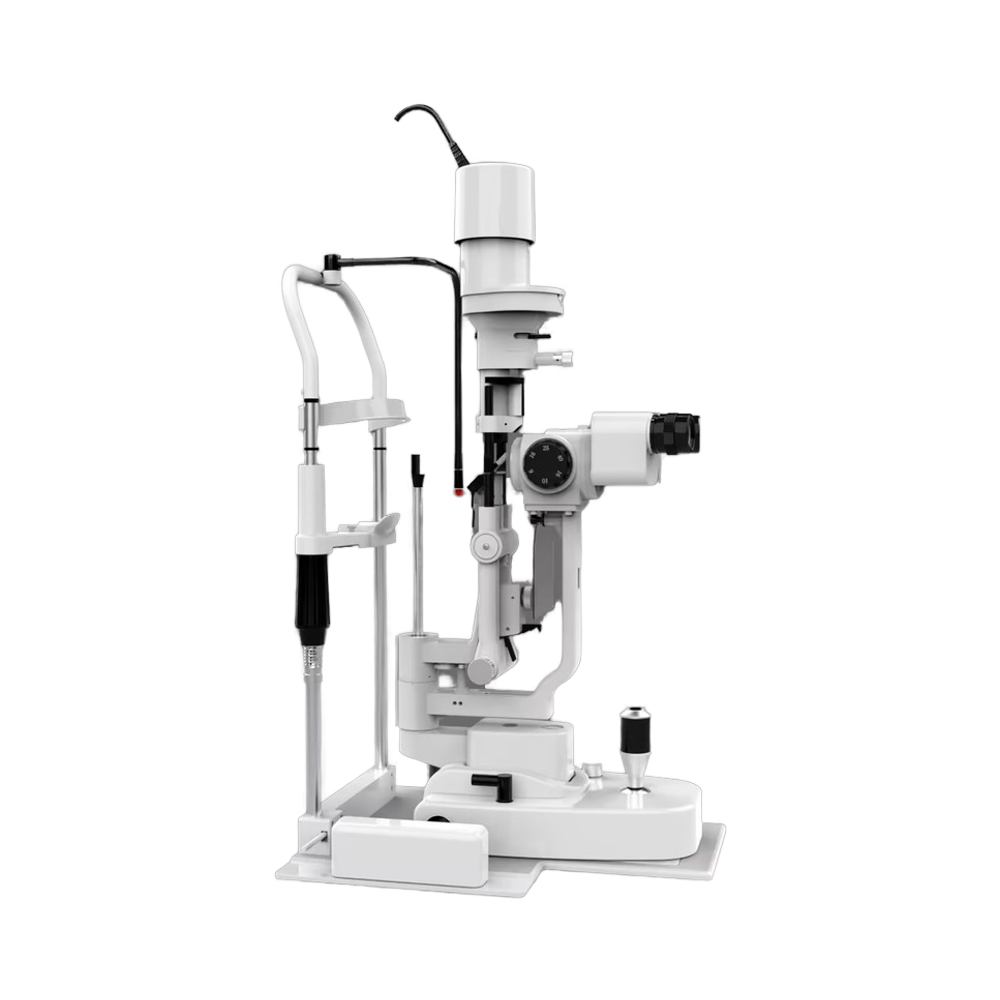

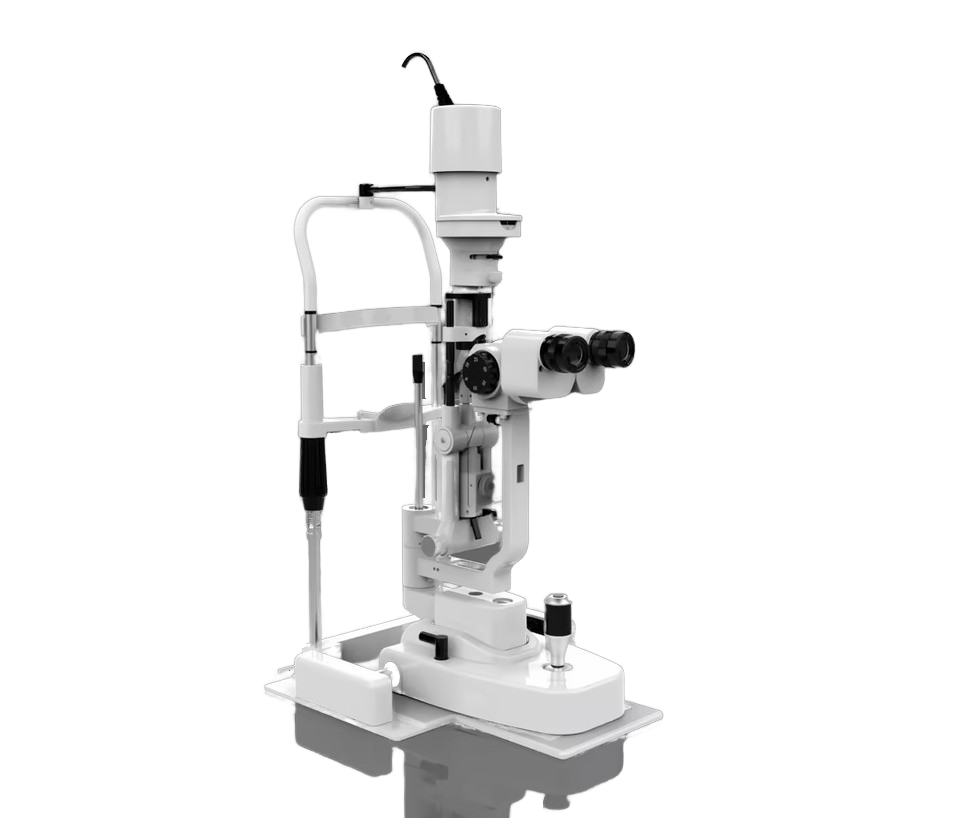

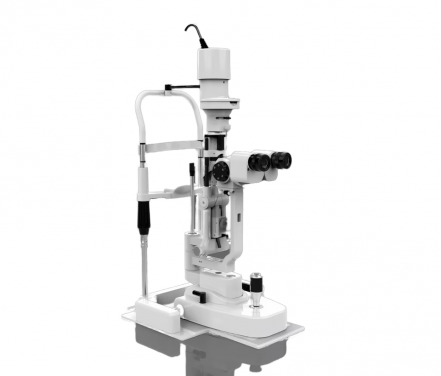

SL-540 LED Digital Eye Test Microscope Ophthalmic Slit Lamp For Optics

Slit Lamp LS-4 specification.pdf
LS-3_4_ manual.pdf

Tel:0086-15800365864
Fax: 0086-21-61178155
E-mail:info@shtopview.com
Address:6F BUILDING NO.1 JIWEN RD NO.588. BAOSHAN DISTRICT,SHANGHAI,CHINA

SL-540 LED Digital Eye Test Microscope Ophthalmic Slit Lamp For

Optical System SL-540

Type:	Galilean system, Parallel type, Haag-streit type
Magnification Changer:	Rotating drum change
Magnification:	6X 10X 16X 25X 40X
Eyepiece:	12.5X
Field of view:	6x(φ33) 10x(φ22) 16x(φ14) 25x(φ8.5) 40x(φ5.5) mm
Pupil Range:	52 - 82 mm
Diopter:	±7D

llumination

Slit angle: 0° - 180°

Slit Aperture: Continuous from 1 - 14 mm, φ14, 10, 5, 3, 1, 0.2 mm

Slit Vertical Tilt: 5° 10° 15° 20°

Filter: Heat Absorption, Grey, Redfree, Cobalt Blue

Fixation Lamp: Red LED 3.5V

Light Resource: LED

Slit Length: Continuous from 1 to 14 mm

Slit Width: Continuous from 0 to 14 mm

Power

Input Voltage: 100 - 240V 48 - 62Hz

Input Power: 70VA

Dimensions and Weight

Dimensions: 740*640*450 mm

Net Weight: 21kg

Gross Weight: 24kg
