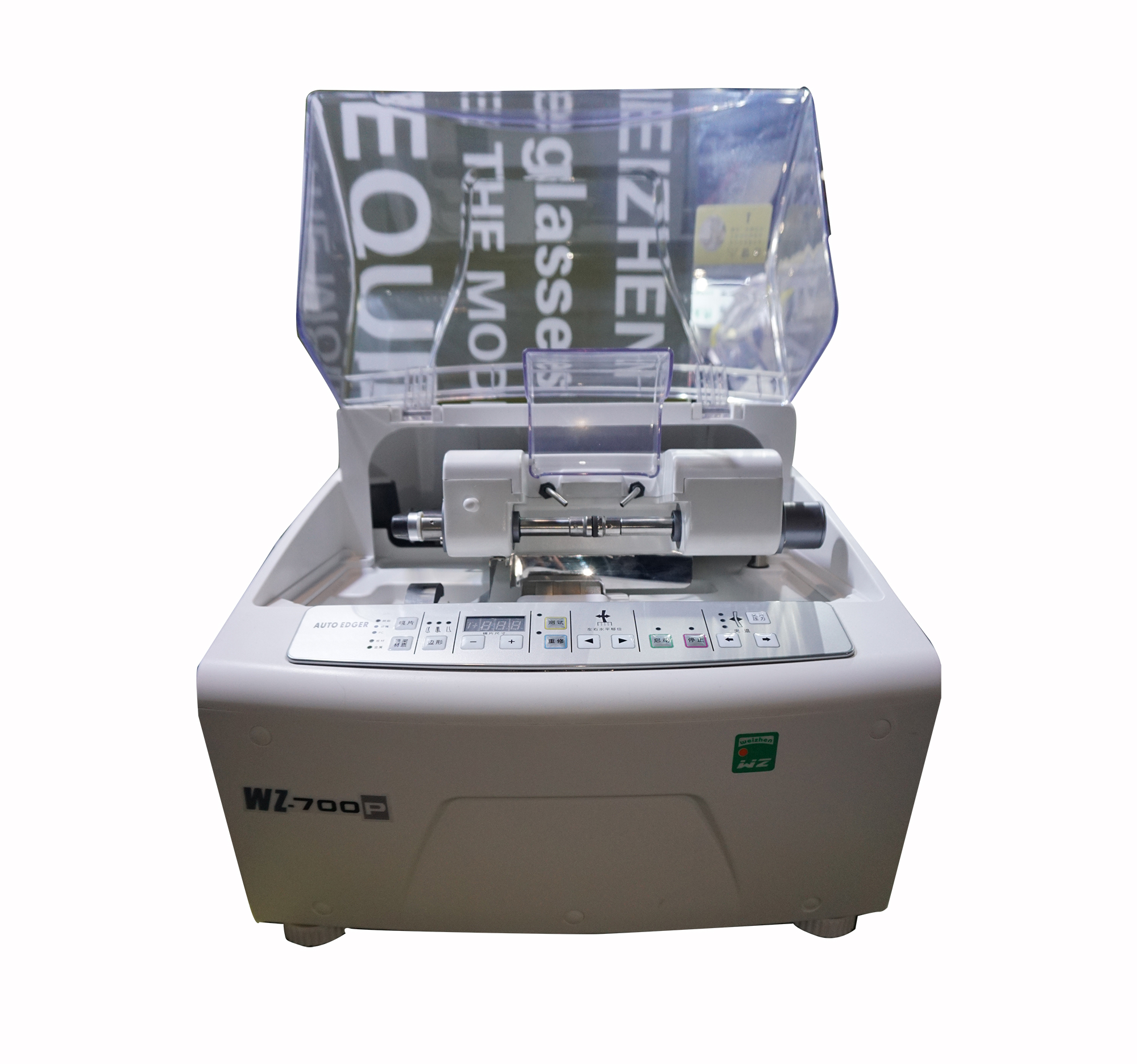

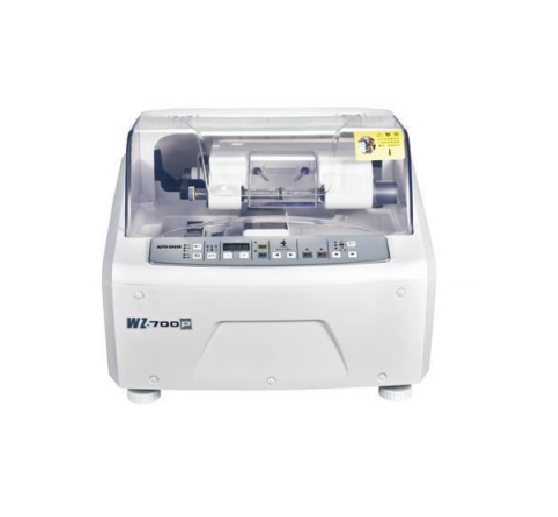

WZ-700P Auto lens edger
-
SHTOPVIEW WZ-710P manual.pdf
-
ECM 1282 MDLVDEMC 自动磨边机.pdf
- Tel:0086-15800365864
- Fax: 0086-21-61178155
- E-mail:info@shtopview.com
- Address:6F BUILDING NO.1 JIWEN RD NO.588. BAOSHAN DISTRICT,SHANGHAI,CHINA

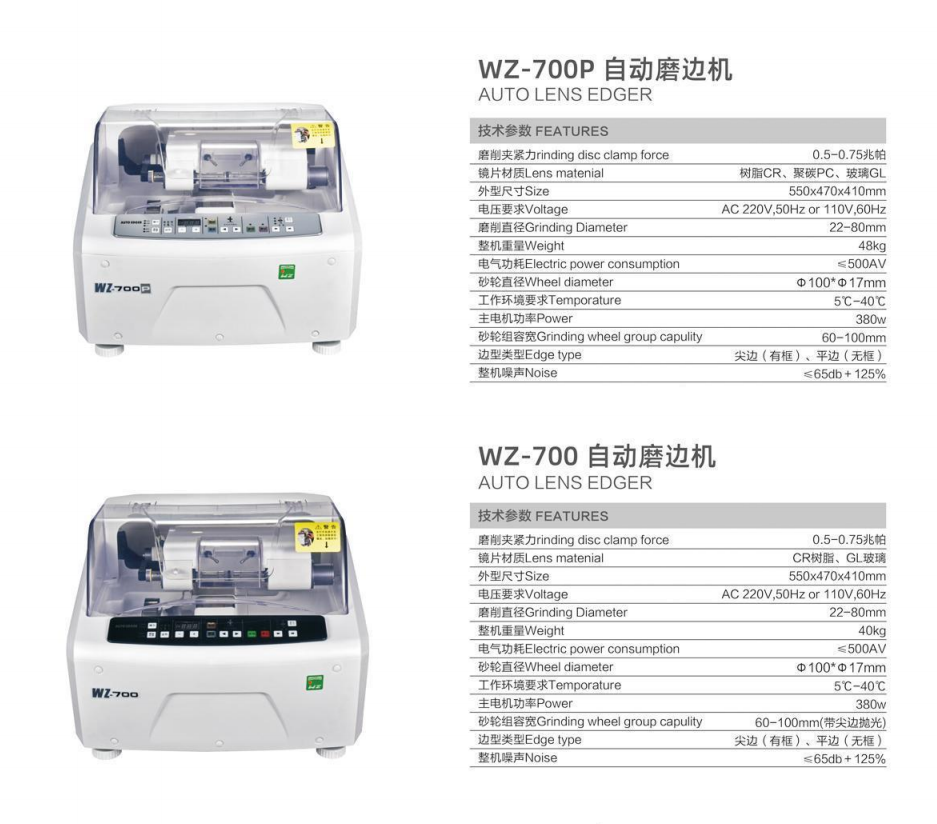

- Features:
|
rinding disc clamp force |
0.5-0.75MPa |
|
Lens matenial |
CR GL PC |
|
Size |
550x470x410mm |
|
Voltage |
AC 220V,50Hz or 110V/60Hz |
|
Grinding Diameter |
22-80mm |
|
Weight |
48kg |
|
Electric power consumption |
≤500AV |
|
Wheel diameter |
100mm*17mm |
|
Temporature |
5°C - 40°C |
|
Power |
380W |
|
Grinding wheel group capulity |
60-100mm |
|
Edger type |
Sharp edges with frames, flat edges without frames
|
|
Noise |
≤65db+125% |
- FUNCTIONS:
