Lensometers for Sale

Features

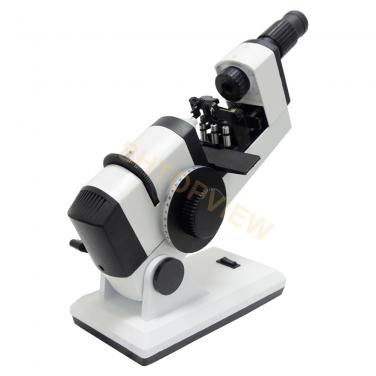

The NJC-4 Lensmeter is used to measure the diopters of spherical lens and cylinder lens, the axis of cylinder lens, the strength
and the baseline direction of shuttle lens, it can also stamp the optical center of lens, the axis of cylinder lens and the base
direction of shuttle lens.
This instrument (Both Ac and Dc are permitted Two cells When Dc) has clear readings and graduations as well as high objective
precision and reliabilities except that it can be operated easily and conveniently, AU the lenses and the made glasses can be
measured by it, therefore, it is a required and ideal measuring instrument for glasses manufactures, glasses stores and
ophthalmological hospitals.

1. ±20D Measurement
2. AC and DC

 DETAILS

Specifications

Vertex power	range	+20diopter-20diopter
	step	0.12D
Prismatic power	range	5 prism diopters
	step	1diopter
Cylindrical axis	range	0 to 180 degrees
	step	1 degree
Lenses accommodated	Diameter 20mm to 85mm
Eyepiece focusing	-5D to +5D
Bulb	220V-110V/6V/3W





If add prism compensator, add 25 degree

Vertex power range +20diopter-20diopter   step 0.12D
Prismatic power range 5 prism diopters    step 1diopter
Cylindrical axis range 0 to 180 degrees    step 1 degree
Lenses accommodated Diameter 20mm to 85mm
Eyepiece focusing -5D to +5D
Bulb 220V-110V/6V/3W
