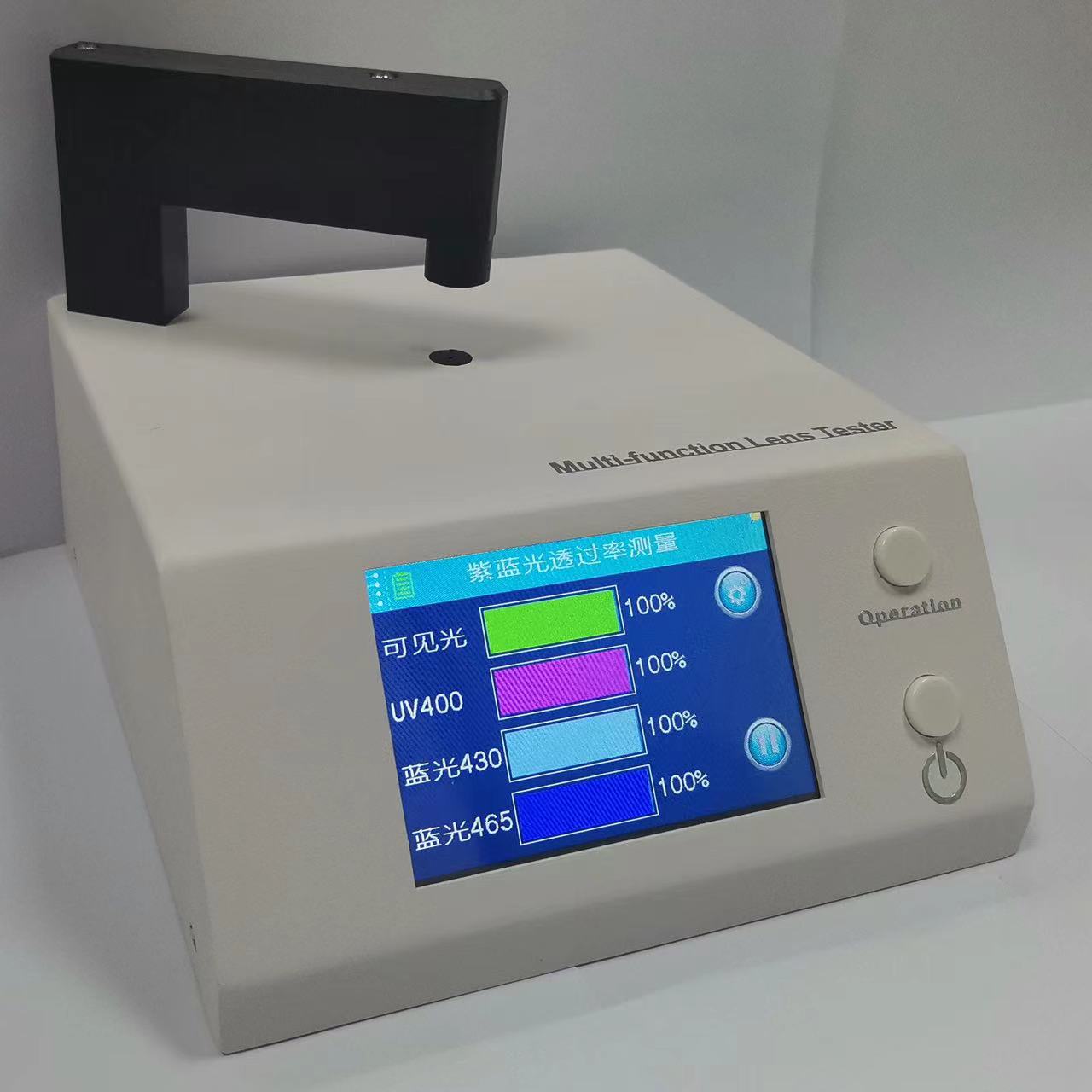

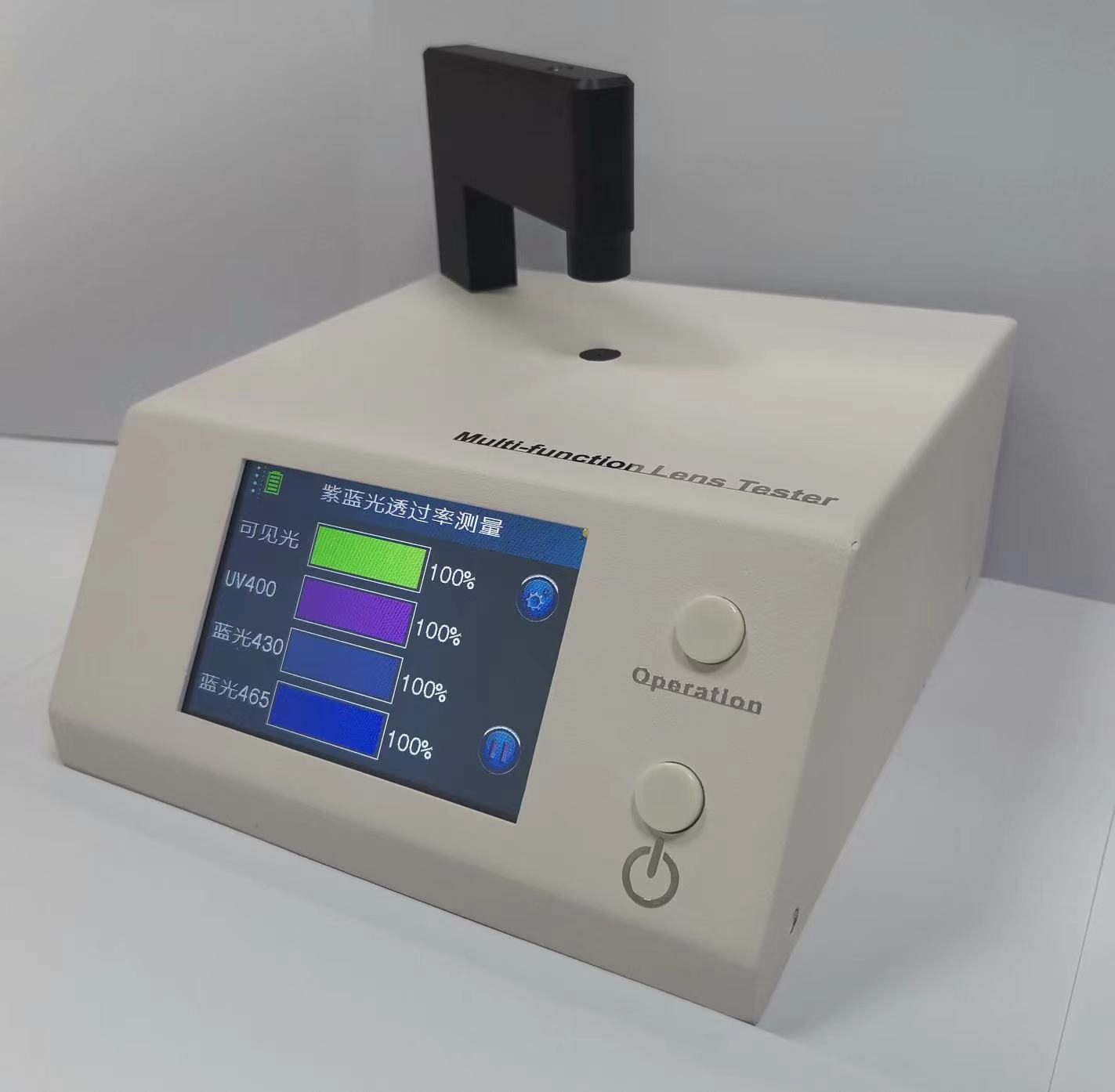

BU-300Violet and Blue Light Transmittance Filter Tester

BU-300 technology parameters

The BU-300 testing principle uses four different wavelength light sources in the table below to irradiate the transparent substance under test. The sensor detects the intensity of the same light source passing through the transparent substance under test and the incident intensity. The ratio of the two is used as the transmittance, which is displayed as a percentage.

Mainly used for testing the optical performance of transparent materials for eyeglass lenses, anti-blue light coating materials and organic materials, etc.

Option	Parameters
Wavelength	UV light: peak wavelength 400nm
	Harmful blue light:peak wavelength430nm
	Harmless blue light: peak wavelength 465nm
	Visible light: 380-~760nm all wavelength
Display	4.0inch 480X320 LCD color display
Operation	Button and touch
Minimal test lens size	Diameter: 1mm
Resolution	1%
Tolerance	±2（Colorless uniform light-transmitting substance，0-90% transmittance）
DC power interface	DC5V/2A
Size	Long 170mmX wide 180mmX high 143mm
Weight	around 1.5kg
Others	built-in lithium battery and Bluetooth transmission for option
