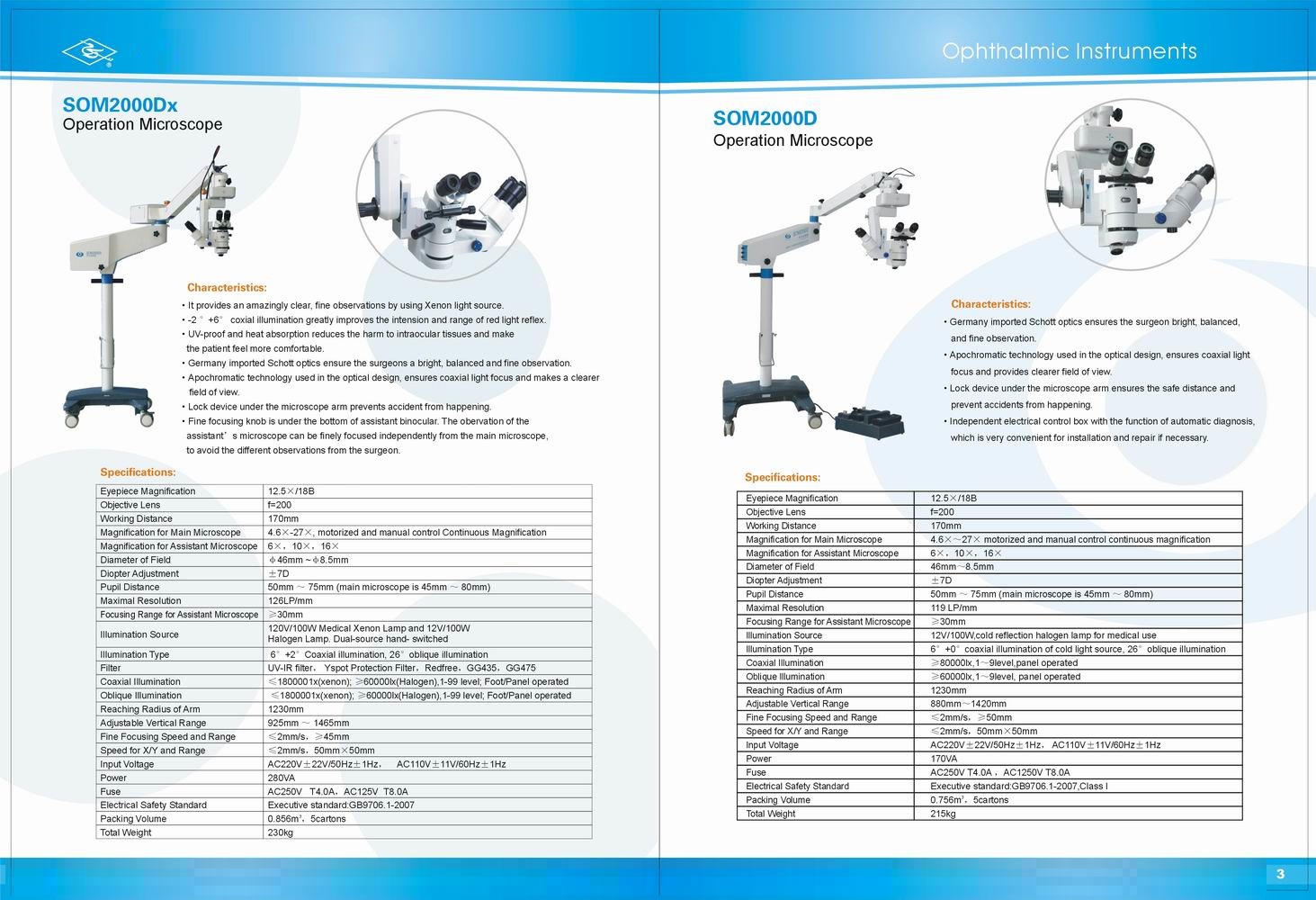

SOM2000DX Operating Microscope

Features

◆ It provides an amazingly clear, fine observations by using Xenon light source.

◆ -2°~+6° coaxial illumination greatly improves the intensity and range of red light reflex.

◆ UV-proof and heat absorption reduces the harm to intraocular tissues and make the patient feel more comfortable.

◆ Schott optics ensure the surgeons a bright, balanced and fine observation.

◆ Apochromatic technology is used in the optical design to ensures coaxial light focus and makes a clearer field of view.

◆ Lock device under the microscope arm prevents accident from happening.

◆ Fine focusing knob is under the bottom of assistant binocular.

◆The observation of the assistant’s microscope can be finely focused independently from the main microscope to avoid the different observations from the surgeon.

Specifications

Eyepiece Magnification	12.5×, 18×
Focal Length of Objective Lens	f=200
Working Distance	170 mm
Magnification for Main Microscope	Continuous variable from 4.6× ~ 27×, motorized and manual control
Magnification for Assistant Microscope	6×, 10×, 16×
Diameter of Field	φ46 mm ~φ8.5 mm
Diopter Adjustment	±7D
Pupil Distance	50 mm ～ 75 mm (main microscope is 45 mm ～ 80 mm)
Maximal Resolution	126 LP/mm
Focusing Range for Assistant Microscope	≥30 mm
Light Source	120V/100W medical Xenon lamp and 12V/100W halogen lamp. Dual-source manual switched
Illumination Type	6°+2°Coaxial illumination, 26°oblique illumination
Filters	UV-IR , yellow spot protection，red-free，GG435，GG475
Coaxial Illuminance	≤180,000 Lx(xenon); ≥60,000 Lx(halogen), 1-99 level; foot/panel operated
Oblique Illuminance	≤180,000 Lx(xenon); ≥60,000 Lx(halogen), 1-99 level; foot/panel operated
Reaching Radius of Arm	1230 mm
Adjustable Vertical Range	925 mm ～ 1465 mm
Fine Focusing Speed and Range	≤2 mm/s，≥45 mm
Speed for X/Y and Range	≤2 mm/s，50 mm×50 mm
Input Voltage	AC 220V/110V±10%, 50Hz/60Hz
Power Consumption	280 VA
Fuse	AC 250V T4.0A, AC 125V T8.0A
Electrical Safety Standard	IEC 60601-1
Packing Volume	0.856 m3，5 cartons
Total Weight	230 kg
