Experienced supplier of jd-2600d auto lens meter

Product

JD-2600B auto lens meter930610

JD2600A user manual.pdf

Tel:0086-15800365864
Fax: 0086-21-61178155
E-mail:info@shtopview.com
Address:6F BUILDING NO.1 JIWEN RD NO.588. BAOSHAN DISTRICT,SHANGHAI,CHINA

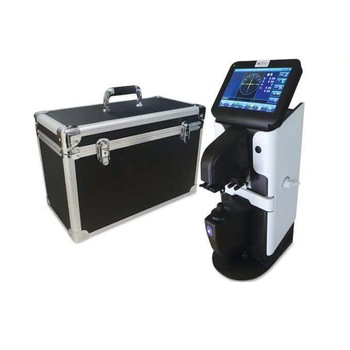

JD-2600B auto lens meter

product feature:

Features:

*Compact and light

*Tilting TFT color LCD touch screen ( 5.6 inch ), clear view, easy and convenient operation.

*Built-in thermal printer, and also can be connected to computer, and display the data on computer.

*Built-in UV tester

*PD measuring

*Automatic recognition of single and progressive lens

*Memory Function

Measure scope
Sphere	-25 D~+25 D 0.01 / 0.12 / 0.25 D steps
Cylinder	0~+/-9.99 D 0.01 / 0.12 / 0.25 D steps
Axis	0~180 ( 1 step )
ADD	0~+9.99 D 0.01 / 0.12 / 0.25 D steps
prism degree	0~15Δ 0.01 / 0.12 / 0.25Δ steps
Mode
cylinder	+, +/-, -
prism	X-Y, P-B
Contact lens	Soft / hard
Measuring mode	Single / progressive / automatic recognition contact lens
Others
Diameter of lens	Ø 20~108mm
PD	45~90mm, 0.25mm steps
Speed	0.1S
ABBE	30~60
Display	TFT LCD ( 5.6″)
Printer	Thermal print

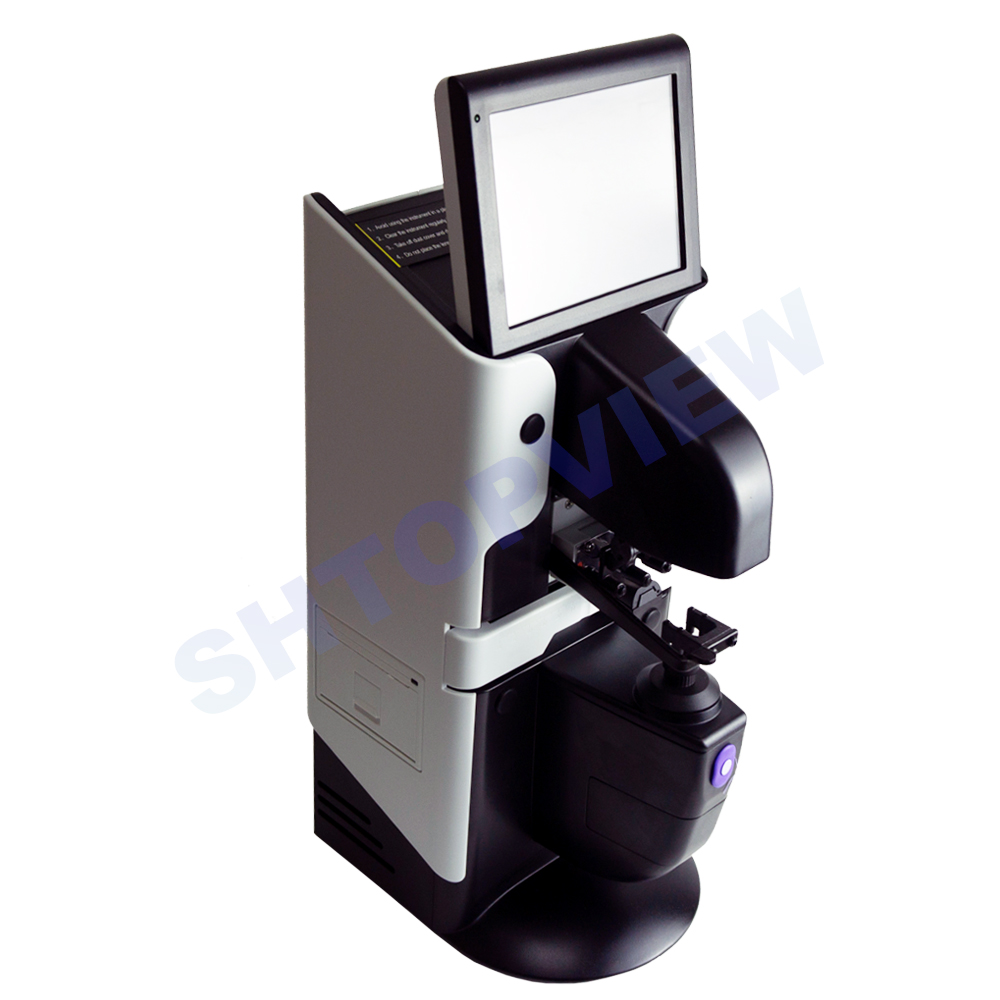

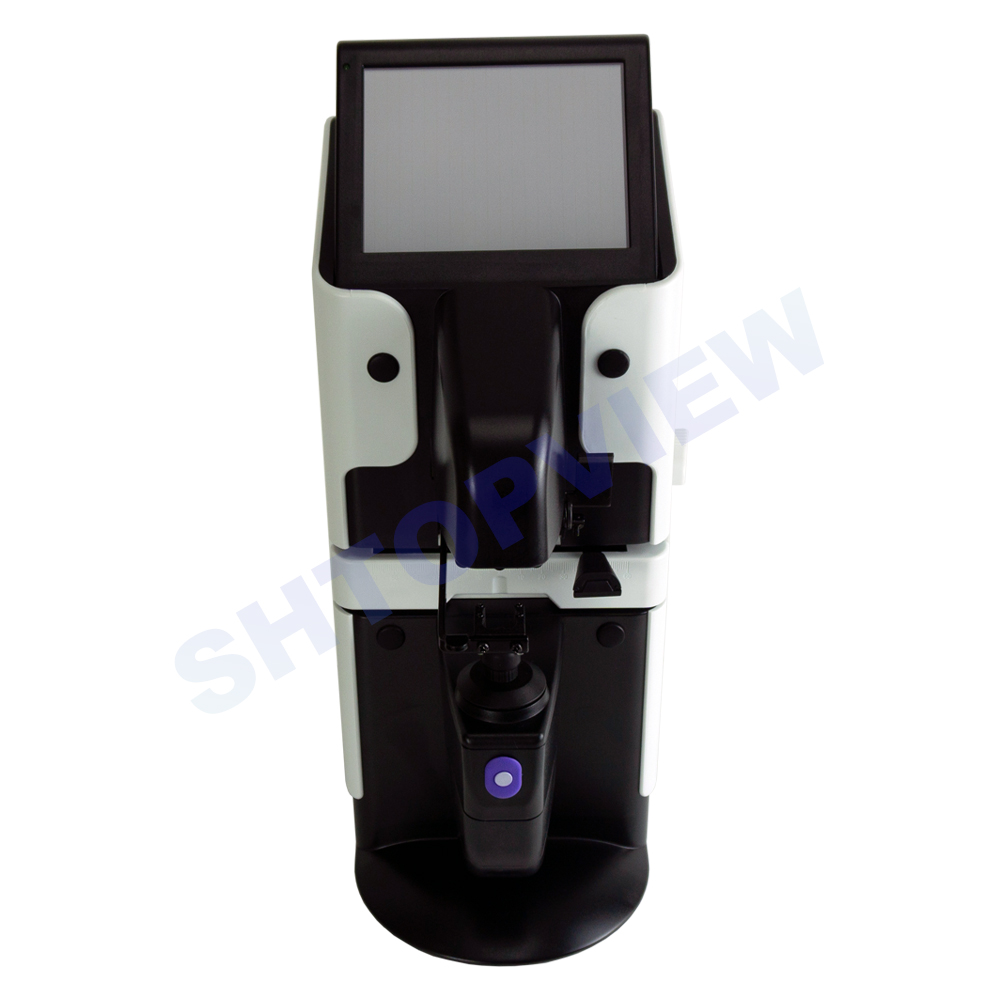

Automatic lens meter Digital Lensmetrer JD-2600B

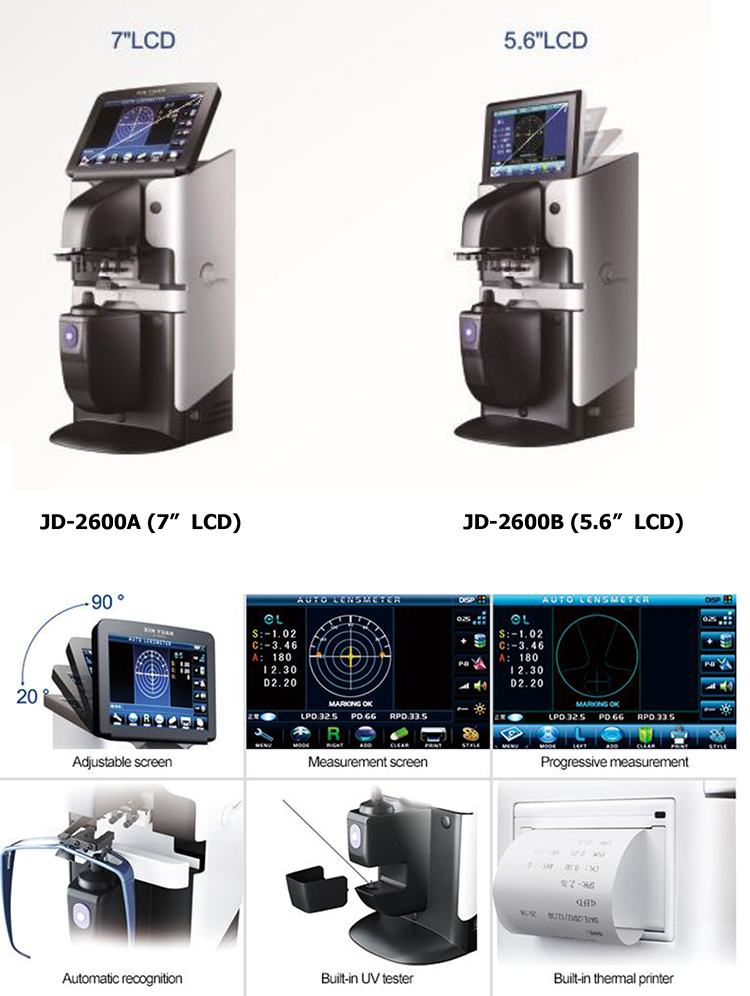

Features

1. Adjustable LCD Display Screen: Tilt color screen provides you with clear view from any position such as sitting and standing;

2. Sensitive touch LCD display Screen: You just touch the screen to finish measurement, the operation could be easier and more convenient.
3. Hartmann Sensor technology: The new generation auto lens meter is based on Hartmann Sensor technology. Advanced simultaneous measurement of 108 points provides a faster measurement with greater accuracy and reliability.

4. Measurement Screen: Easy to use with recognizable icons. The JD-2600A provides a user-friendly Graphical interface for an immediate Understanding.
5. Progressive measurement: A graph helps the operator to improve accuracy and speed in the measurement of near and far vision

6. Built-in Thermal Printer: Quick data print with built-in printer. Easy to reload printing paper.

Sensitive touch LCD display screen

Just touch the screen can finish your measurement, your operation could be easier and more convenient.
This new generation auto lens meter is based on Hartmann Sensor technology. Advanced simultaneous measurement of 108 points provides a faster measurement with greater accuracy and reliability.

1.Adjustable LCD display screen

Tilt color screen provides you with clear view from any position,such as sitting and standing.

2.Measurement screen

Easy to use with reconisable icons.
The JD-2600A provides a user-friendly graphical interface for an immediate understanding.

3. Progressive measurement

A graph helps the operator to improve accuracy and speed in the measurement of near and far vision;

4.Automatic recognition of single and progressive measurement

Automatic measurement of progressive lenses.A graph helps the operator to improve accuracy and speed in the measurement of near
and far vision.

5. Bulit-in UV tester with Hi-speed UV measurement

Just hold the lens through the sensor, the display will easily indicate the UV measurement by the progress bar;

6.Built-in thermal printer

Quick data print with built-in printer.Easy to reload printing paper.

PRODUCT DETAIL :

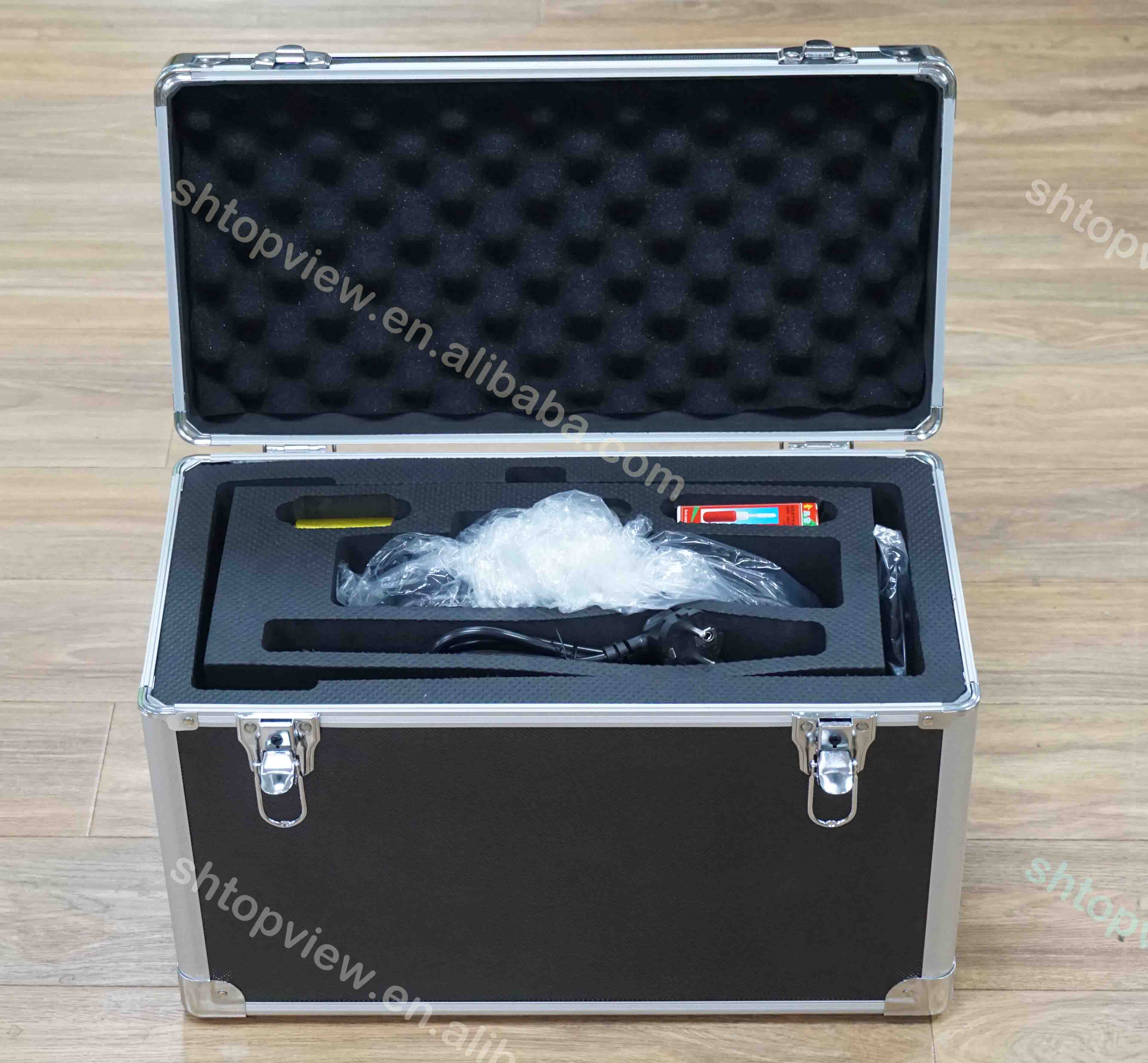

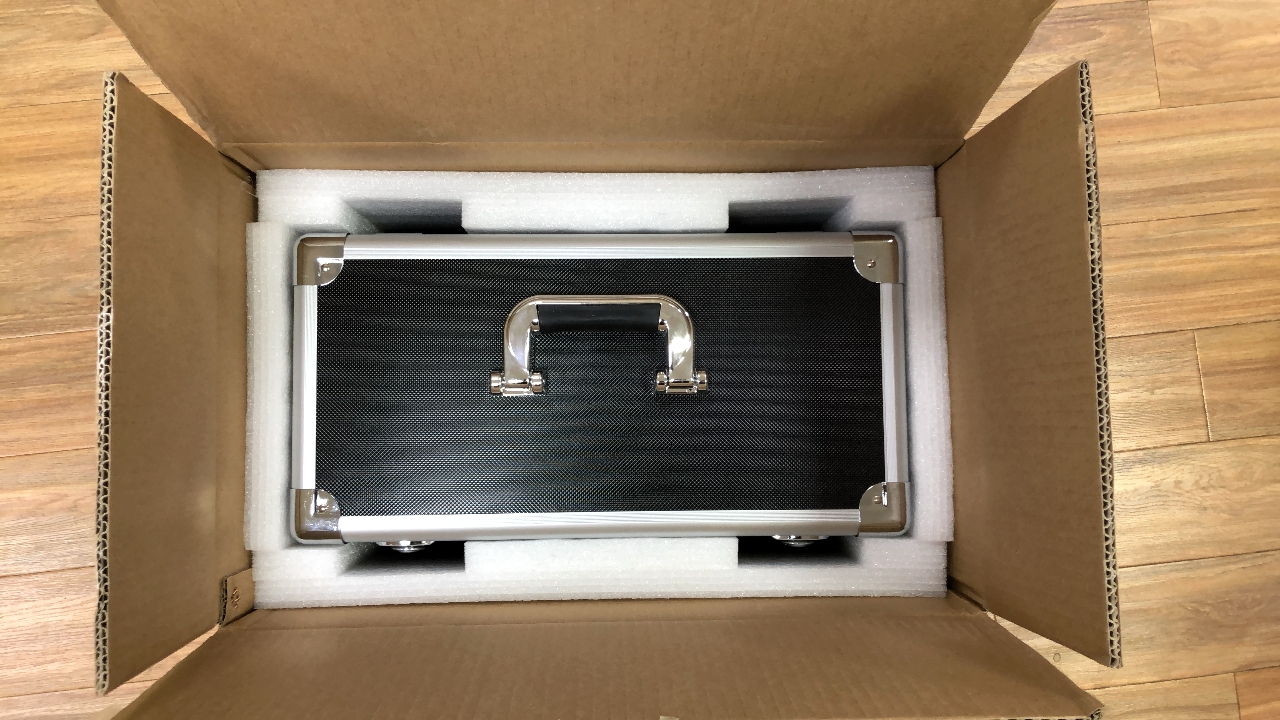

Product packaging：
